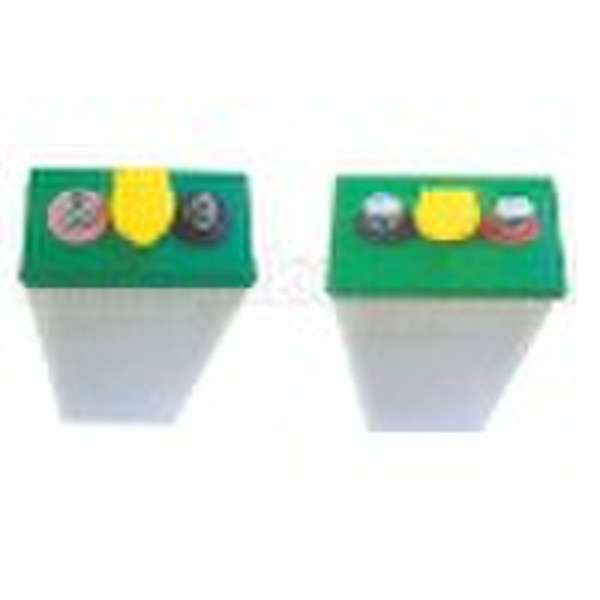

Acid Lead Battery 3PzS165(For Electric Fork lift,

Acid Lead Battery 3PzS165(For Electric Fork lift, Lift truck) Model name:3PzS165 Standard: DIN V/C5: 2V/165Ah Cell sizes: 65(L)*198(W)*290(H)*325(TH)mm Connection : Hard(Solder) and Flexible(Bolted) Its made up of a paste-squeezing, tube-shaped, positive plate, a pasted negative plate, a PE separator and a battery through full of imported polypropylene. It is characterized by high capacity, slight discharge, quake resistance and long service life. Parts details: - Positive Tubular Plates Positive tubular plates are constructed with lead-antimony alloy so as to optimize cycle life with the lowest water consumption possible. - Negative Plates Negative grid plates are designed with pasted lead grid so as to provide a high spongy level and reduce capacity loss. - Separators Microporous separators are designed to have a high porosity grade so as to ensure better ionic circulation and low internal resistance. - Electrolyte Diluted sulphuric acid 1.29 kg/lt at 30C for the PzSH and PzSHx range. - Casing Material Boxes and lids are impact resistant and made of polypropylene (PP). - Terminals Terminals are designed to prevent electrolyte leakage and the subsequent damage to the copper connectors. Bolt-on type terminals allow cells to be replaced or moved without excessive force. - Plugs - Flip top plugs with electrolyte indication. - Automatic refilling plugs are also available (upon request). This system allows topping up of all the cells from one central point through an integrated system. The automatic vent plugs ensure the optimum filling level of the cells and minimize the required time for battery maintenance.
